Description

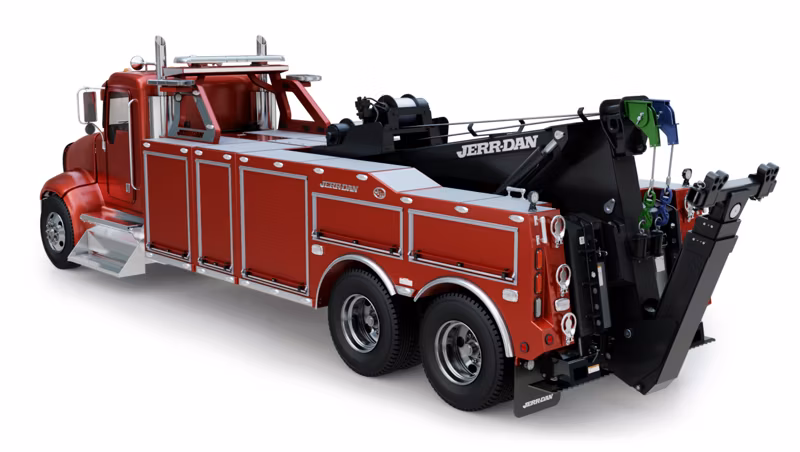

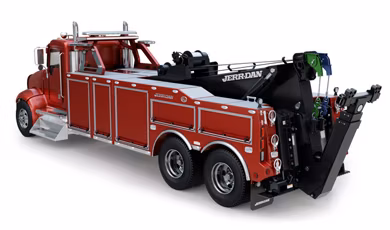

The JD35 INT is a Heavy Duty Integrated Wrecker featuring a 70,000 lb two-stage wrecker boom, corrosion-resistant body, and optional 3- stage underlifts- all designed with strength performance in mind.
Specifications
Manufacturer
Jerr-Dan
Model
JD35 INT
Year
2026
Category
Tow Trucks
Subcategory
Heavy Duty Wreckers
Rated Capacity at 30 Retracted
70,000 lbs
Rated Capacity at 30 Extended
22,000 lbs
Reach Past Tailboard Extended at 0
132 in
Reach Past Tailboard Extended at 30 (One)
87 in
Dual Boom Mounted Planetary Winches
35,000 lbs each
Wire Rope 5/8" x 250' EIPS Galvinzed
11,700 lbs
Minimum GVW Rating
54,000 lbs
Minimum RBM per rail
3,250,000 in-lbs
Rated Capacity - Retracted
35,000 lbs
Rated Capacity - Extended
16,000 lbs
Rated Capacity - Retracted (One)
35,000 lbs
Rated Capacity - Extended (One)
22,000 lbs
Tow Capacity (One)
80,000 lbs
Tow Capacity
80,000 lbs
Maximum Boom Angle
39 degrees
Maximum Hook Height
225 in
Reach Past Tailboard - Retracted with Forks at Ground Level
63 in
Reach Past Tailboard - Extended with Forks at Ground Level
128 in
Positive Tilt
20 degrees
Negative Tilt
10 degrees
Reach Past Tailboard - Retracted with Forks at Ground Level (One)
132 in
Reach Past Tailboard - Extended with Forks at Ground Level (One)
87 in
Negative Tilt (One)
10 degrees
Positive Tilt (One)
20 degrees
