Description
With the strongest platform in the industry, our rotator subframe has a unique design built for strength and stability.
Specifications
Manufacturer
Jerr-Dan
Model
50/60 Rotator (HDR 1000) S100 Outriggers
Year
2025
Category
Tow Trucks
Subcategory
Rotators
Extended Capacity @ 30
20,000 lbs
Retracted Capacity @ 30
100,000 lbs
Side Capacity Extended @ 0 degrees
10,300 lbs
Side Capacity Extended @ 30 degrees (One)
12,100 lbs
Rated Capacity - Retracted
35,000 lbs
Rated Capacity - Extended
16,000 lbs
Positive Tilt
10 degrees
Negative Tilt
20 degrees
Tow Capacity
80,000 lbs
Rated Capacity - Retracted (One)
35,000 lbs
Rated Capacity - Extended (One)
16,000 lbs
Positive Tilt (One)
10 degrees
Negative Tilt (One)
20 degrees
Tow Capacity (One)
80,000 lbs
Rated Capacity - Retracted (Two)
53,000 lbs
Rated Capacity - Extended (Two)
17,000 lbs
Positive Tilt (Two)
9 degrees
Negative Tilt (Two)
21 degrees
Tow Capacity (Two)
80,000 lbs
Rated Capacity - Retracted (Three)
56,500 lbs
Rated Capacity - Extended (Three)
17,600 lbs
Positive Tilt (Three)
9 degrees
Negative Tilt (Three)
21 degrees
Tow Capacity (Three)
80,000 lbs
Rated Capacity - Retracted (Four)
56,500 lbs
Rated Capacity - Extended (Four)
17,600 lbs
Positive Tilt (Four)
9 degrees
Negative Tilt (Four)
21 degrees
Tow Capacity (Four)
80,000 lbs
Footprint
191 in
Type
Scissor
50,000 lb 2-Speed Planetary Winch
3/4 X 250 - 6 X 36 EEIPS - IWRC WLL 18,500 lbs w/ Locking Swivel Hook
35,000 lb 2-Speed Planetary Winch (One)
5/8 X 250 - 6 X 37 EEIPS - IWRC WLL 12,900 lbs w/ Locking Swivel Hook
20,000 lb Planetary Winch
9/16 X 135 - 6 X 36 EEIPS - IWRC WLL 10,500 lbs w/ Locking Swivel Hook
Drag Winch Options
20,000 lbs, 35,000 lbs, 50,000 lbs
Minimum RBM per Rail
4,200,000 in-lbs
Minimum Front Axle Rating
20,000 lbs
Minimum Rear Axle Rating
46,000 lbs
Minimum GVW Rating
86,000 lbs
Minimum Body Useable Cab to Tandem (CT)
215 in
Reach Past Tailboard - Extended @ 0 degrees
283 in
Reach Past Tailboard - Extended @ 30 degrees (One)
216 in
Reach Past Tailboard - Extended @ 60 degrees (Two)
33 in
Maximum Hook Height
513 in
Working Hook Height @ 60 Degrees Retracted
287 in
Maximum Boom Length
41 ft
Working Hook Height 0 Degrees
83 in
Working Hook Height 30 Degrees Extended
332 in
Working Hook Height 30 Degrees Retracted (One)
201 in
Working Hook Height 60 Degrees Extended (One)
513 in
Working Hook Height Auxiliary Winch @ 0 Degrees
73 in
Working Hook Height Auxiliary Winch @ 30 Degrees (One)
173 in
Working Hook Height Auxiliary Winch @ 30 Degrees (Two)
250 in

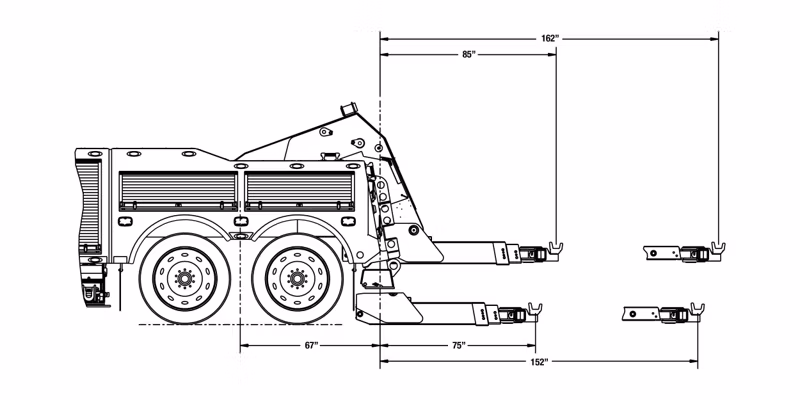

Reach Past Tailboard Retracted With Forks at Ground Level
75 in
Reach Past Tailboard Extended with Forks at Ground Level
152 in

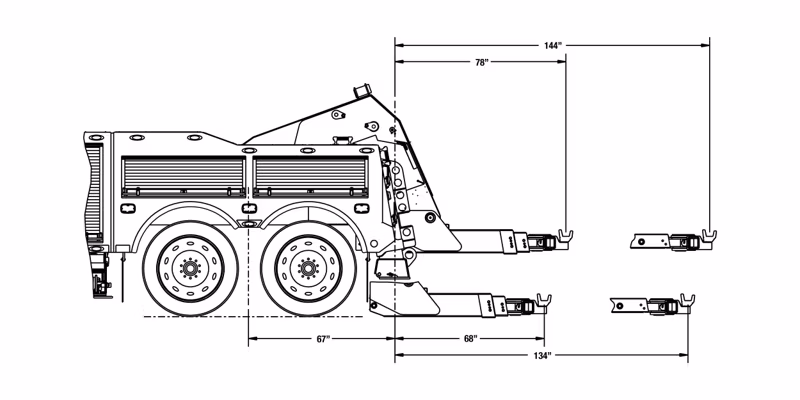

Reach Past Tailboard Retracted with Forks at Ground Level (One)
68 in
Reach Past Tailboard Extended with Forks at Ground Level (One)
134 in
Reach Past Tailboard Retracted with Forks at Ground Level (Two)
77 in
Reach Past Tailboard Extended with Forks at Ground Level (Two)
147 in
Reach Past Tailboard Retracted with Forks (Three)
92 in
Reach Past Tailboard Extended with Forks (Three)
186 in

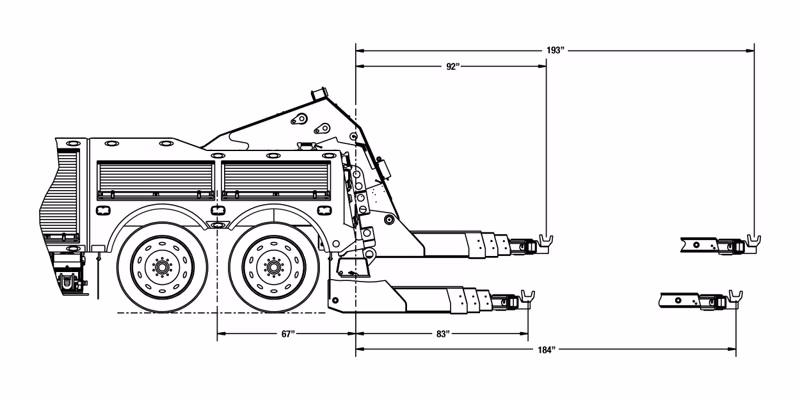

Reach Past Tailboard Retracted with Forks at Ground Level (Four)
83 in
Reach Past Tailboard Extended with Forks at Ground Level (Four)
184 in
